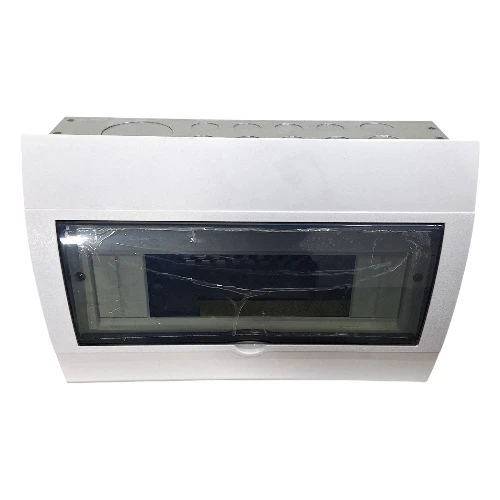

Lear Din Rail Distribution Box | 12 Way, Metal Frame

Name: Lear Din Rail Distribution Box | 12 Way, Metal Frame
SKU: 16504
Availability: OutOfStock

R270.00

The Lear DIN Rail Distribution Box | 12 Way, Surface, Metal Frame is a robust, externally mounted enclosure designed for secure and accessible circuit management. Unlike fully plastic units, this hybrid model features a durable metal back box with multiple knock-out entries and a semi-transparent plastic front cover for visual inspection. Ideal for residential and commercial installations, it accommodates up to 12 DIN rail-mounted breakers in a centralized, surface-mounted format.

Lear DIN Rail Distribution Box | 12 Way, Surface, Metal Frame Details:

Mounting Type: Surface-mounted for external wall installation
Capacity: Supports up to 12 DIN rail-mounted components
Material: Front: Plastic. Back: Metal
Colour: White front with grey back and semi-transparent grey cover
Shape: Rectangular box with hinged front cover
Dimensions: Width: 30cm. Height: 25cm
Design Features: Hinged transparent cover for easy access and visual inspection. Multiple circular knock-out holes for cable entry (top and sides)
Functionality: Centralized enclosure for circuit breakers and wiring

What’s In The Box?

1 x Lear DIN Rail Distribution Box | 12 Way, Surface, Metal Frame

1 x Pre-installed horizontal DIN rail

Out of stock

Lear DIN Rail Distribution Box Overview

The Lear DIN Rail Distribution Box is engineered for surface-mounted applications where durability and accessibility are essential. Its metal back frame enhances structural integrity, while the transparent front cover allows for quick visual checks without opening the enclosure.

Lear DIN Rail Distribution Box Benefits and Features

12-Way Capacity: Ideal for medium-scale electrical layouts
Hybrid Construction: Metal back for strength, plastic front for visibility
Surface-Mount Design: Quick installation on external or exposed walls
Visual Access: Semi-transparent cover enables inspection without removal
Cable Management: Knock-out holes simplify routing and entry
Secure Housing: Protects internal components from dust and contact
Durable Build: Designed for long-term use in residential or commercial settings

Lear-Din-Rail-Distribution-Box-12-Way-Metal-Frame_16504_2

Steps to Follow for Installing the Lear DIN Rail Distribution Box

Preparation:

Select a flat wall surface for mounting
Ensure power is disconnected before installation
Gather mounting hardware and tools

How to Install the Distribution Box:

Mark and drill mounting points on the wall
Secure the box using appropriate screws
Mount circuit breakers or components onto the DIN rail
Connect wiring through knock-out holes as required
Close the hinged cover and verify visibility

Cleanup:

Wipe down the enclosure with a dry cloth
Label internal components for future reference
Dispose of packaging responsibly

A Few Scenarios Where the Product Can Be Used:

Surface-mounted distribution in garages or workshops
Commercial control boards requiring external access
Utility room upgrades with visible breaker layout
Outdoor installations in covered areas

Other Products You May Need for Your Electrical Installation

Health and Safety

Always install distribution boxes in accordance with local electrical codes and safety regulations. Furthermore, ensure power is fully disconnected before handling internal components. In addition, use insulated tools and wear appropriate protective gear. Finally, installation and maintenance should be performed by qualified personnel only.

Want more tips for installing a circuit breaker? Click here to learn more.

Additional information

Weight	1.225 kg
Dimensions	10 × 30 × 25 cm
