Lear LCD-1 Circuit Breaker Overview

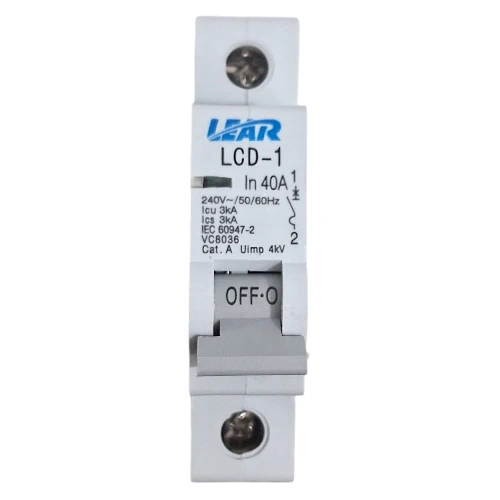

The Lear LCD-1 is a streamlined circuit breaker designed for efficient load protection in single-phase systems. Its compact form and high fault tolerance make it a dependable choice for panel builders and electricians seeking IEC-compliant solutions.
Lear LCD-1 Circuit Breaker Benefits and Features
- Single-Pole Protection: Ideal for individual circuit isolation
- High Breaking Capacity: Rated at 3kA for fault resilience
- Impulse Resistance: Withstands surges up to 4kV
- Clear Lever Indicator: OFF–O marking for quick visual reference
- DIN Rail Mounting: Simplifies integration into standard enclosures
- Secure Wiring: Screw terminals ensure tight, reliable connections
- Compact Profile: 7cm width fits neatly into distribution boards
- Standard Compliance: Meets IEC 60947-2 for safety and performance
Steps to Follow for Installing the Lear LCD-1 Circuit Breaker
Preparation:
- Disconnect power supply before installation
- Confirm DIN rail compatibility and available panel space
- Prepare wiring according to load specifications
How to Install the Lear LCD-1 Circuit Breaker:
- Mount the breaker onto the DIN rail
- Connect wires to screw terminals securely
- Verify terminal alignment and polarity
- Switch lever to OFF–O position before energizing
- Restore power and test functionality
Cleanup:
- Tighten all terminal screws
- Label breaker for identification
- Dispose of packaging responsibly
A Few Scenarios Where the Product Can Be Used:
- Ideal for residential distribution boards. Moreover, they ensure safe power management while supporting reliable household electricity use.
- Light commercial distribution boards
- Load isolation for lighting or appliance circuits
- Backup protection in small generator setups
