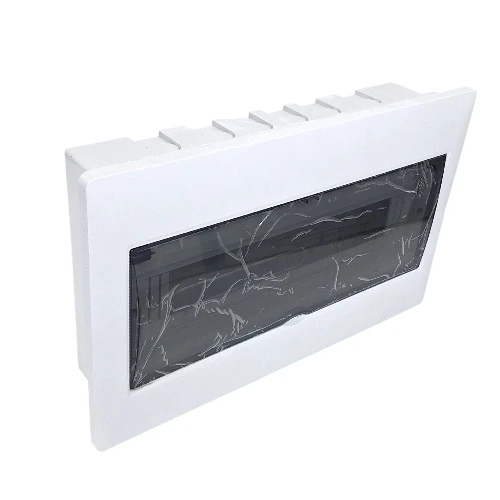

Lear DIN Rail Distribution Box Overview

The Lear DIN Rail Distribution Box is engineered for flush-mounted installations where aesthetics and accessibility are key. Moreover, its recessed profile and hinged door allow for discreet integration into walls while still maintaining full access to internal components.

Lear DIN Rail Distribution Box Benefits and Features

• 16-Way Capacity: Supports multiple breakers or control devices
• Flush-Mount Design: Seamlessly integrates into wall surfaces
• Visual Access: Translucent door allows inspection without opening
• Secure Housing: Protects internal components from dust and contact
• Durable Build: Plastic enclosure with metal DIN rail for stability
• Flexible Door Mounting: Hinges on either side for installation flexibility
• Compact Profile: Ideal for residential, commercial, or utility spaces

Steps to Follow for Installing the Lear DIN Rail Distribution Box

Preparation:

1. Identify recessed wall cavity for flush mounting
2. Ensure power is disconnected before installation
3. Gather mounting hardware and tools

How to Install the Distribution Box:

1. Cut and prepare wall opening to match box dimensions
2. Insert box and secure using appropriate fasteners
3. Mount circuit breakers or components onto the DIN rail
4. Connect wiring to each device as required
5. Close the hinged door and verify visibility and alignment

Cleanup:

• Wipe down the enclosure with a dry cloth
• Label internal components for future reference
• Dispose of packaging responsibly

A Few Scenarios Where the Product Can Be Used:

• Recessed electrical panels in residential homes
• Perfect for commercial control boards requiring clean wall integration. Moreover, it supports seamless installation while maintaining a professional finish.
• Ideal for utility room upgrades with concealed distribution. Furthermore, it ensures a neat appearance while maintaining safe and reliable power management.
• Suitable for office or retail installations with aesthetic requirements. Moreover, it provides reliable functionality while maintaining a clean and professional appearance.

Other Products You May Need for Your Electrical Installation

Health and Safety

Always install distribution boxes in accordance with local electrical codes and safety regulations. In addition, ensure power is fully disconnected before handling internal components. Furthermore, use insulated tools and wear appropriate protective gear. Finally, installation and maintenance should be performed by qualified personnel only.
