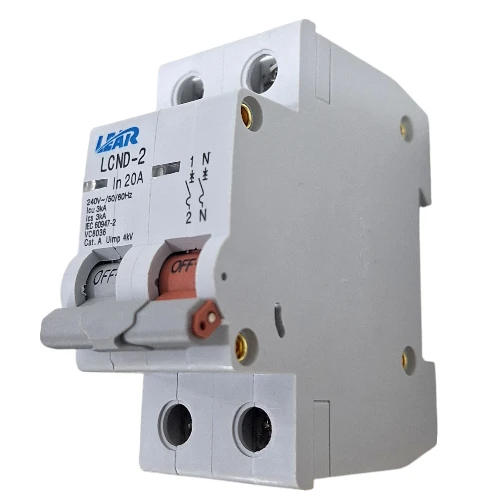

Lear LCND-2 Circuit Breaker | 20A, 1-Pole, 240V
Lear LCND-2 Circuit Breaker | 20A, 1-Pole, 240V
R90.00
The Lear LCND-2 Circuit Breaker (20A, 1-Pole, 240V) delivers dependable protection against overloads and short circuits in single-phase systems. With a compact 4cm width, 3kA interrupting capacity, and simple DIN rail mounting, it’s built for safe and efficient electrical distribution in both residential and commercial panels.
Lear LCND-2 Circuit Breaker | 20A, 1-Pole, 240V Details:
- Type: 1-Pole miniature circuit breaker
- Current Rating: 20A
- Voltage Capacity: 240V AC
- Interrupting Capacity (Icu): 3kA
- Impulse Withstand Voltage (Uimp): 4kV
- Width: 4cm
- Material: Insulating, impact-resistant plastic housing
- Compliance: Conforms to IEC 60947-2 standards
- Mounting Style: DIN rail for quick installation
- Functionality: Provides overcurrent and short-circuit protection
What’s In The Box?
1 x Lear LCND-2 Circuit Breaker (20A, 1-Pole, 240V)
SKU: 10351
Lear LCND-2 Circuit Breaker Overview
Engineered for compact performance, this single-pole breaker is ideal for protecting individual circuits across homes and buildings. It snaps securely onto a standard DIN rail, ensuring efficient installation and safe circuit control.
Lear LCND-2 Breaker Benefits and Features
- Effective Protection: Guards against overload and short-circuit damage
- Compact Footprint: 4cm-wide housing saves space in tight panels
- High Safety Standards: Tested to IEC 60947-2 for reliable operation
- Easy Mounting: DIN rail compatibility speeds up installation
- Clear Toggle Control: ON/OFF indication for straightforward use
Steps to Follow for Installing the Lear LCND-2 Circuit Breaker
Preparation:
- Turn off main power at the source
- Verify panel compatibility with DIN rail and 240V circuit requirements
- Use insulated tools and follow wiring best practices
Installation of The Lear LCND-2 Circuit Breaker
- Mount the breaker on the rail securely
- Connect the incoming and outgoing wires to the proper terminals
- Tighten terminal screws and confirm toggle switch movement
- Restore power and verify function
Cleanup & Storage:
- Keep dust-free with occasional wipe-down
- Store unused units in a dry, stable environment
A Few Scenarios Where the Circuit Breaker Can Be Used:
- Ideal for individual lighting or outlet circuits in homes, this solution ensures clear separation and reliable distribution, thereby enhancing overall safety and system efficiency.
- Sub-panels in residential or light commercial buildings
- Device-level protection in equipment cabinets
- Upgrades in electrical boards requiring 20A single-pole protection
- Electrical renovation and expansion projects
Other Products You May Need for Your Circuit Protection Setup
Health and Safety
Only qualified personnel should install or service this breaker. Ensure proper de-energization before installation. Match breaker specifications to circuit load and consult with a licensed electrician where needed.
Want more tips for installing a circuit breaker? Click here to learn more.
Additional information
| Weight | 0.193 kg |
|---|---|
| Dimensions | 7 × 4 × 9 cm |
